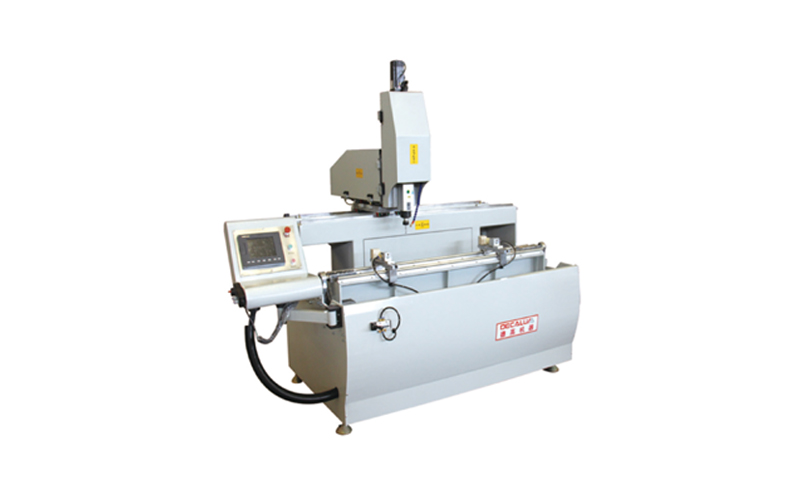

Aluminium Profile CNC Drilling Milling Machine SKX-CNC-1200
Specification:
1. Applicable for drilling holes, milling groove, circular hole, irregular-shaped hole and plane engraving of aluminum profile.
2. It Adopts Taiwan new technology CNC system, which makes sure machine running smooth.
3. Adopt with high precision electric axis, keep working safety.
4. X axis adopt with high precision bevel gear, while Y axis and Z axis adopt with high precision ball screw, thus keep transmission smooth.
5. Through Programming software auto conversion G code, you can drawing any holes on computer and conversion.
6. The working table can be rotated 180º (-90ºto+90º), It can realize three-sides processing by clamping one time; it process deep and special-shaped holes through workbench; high efficiency and precision.
Technical Parameter:
| Power supply | Made to order |
| Hydraulic gearbox motor power | 3KW |
| Rotary speed | 18000r/min |
| Operation air pressure | 0.5~0.6Mpa |
| Processing range of X/Y/Z | X=1200mm, Y=300mm, Z=280mm |
| The specification of blade | ER25*8 diameter |
| Max.Processing range of hole | 100*140mm |
| Dimension | 2200*1500*1950mm |
| Weight | 610kg |
